M5/M5A1
Stuart Light Tank and M8 75mm Howitzer Gun Carriage World War Two Production Statistics
This page updated 10-17-2019.
This Cadillac built M5 came off the assembly
line in September 1942. It is serial number 644 with registration
number 3044078. Author's photo from the First Division Museum in
Wheaton, IL taken 12-2-2017.

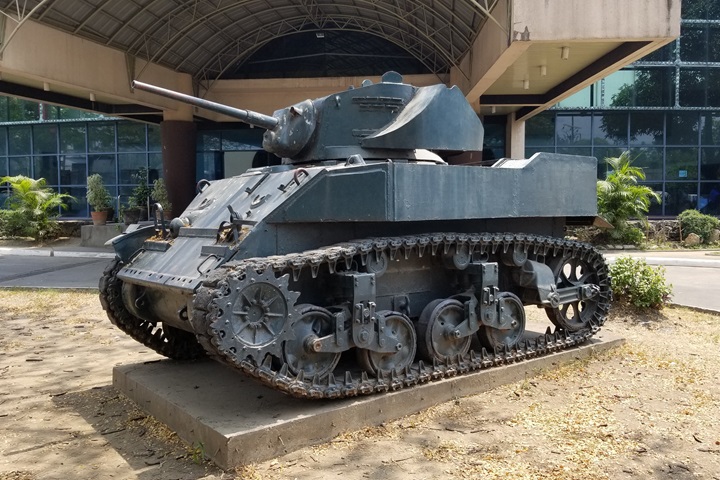

M5s are on display around the world.
This M5A1 is at the Philippine Veterans Museum in Taguig City, The
Philippines. Photo courtesy of Tim Cislo added 5-26-2020.
|
M5/M5A1 Production Information
Courtesy of
Joe DeMarco
Production is listed by ascending serial numbers as distributed
by Army Ordnance.
Author's Note: Some sources
credit the M5 and M5A1 Stuart tanks built by the Southern
California Division of General Motors at South Gate, CA to the
Cadillac Division of GM. This is incorrect, as the
Southern California Division of GM was its own entity within the
GM corporate family. For more information on this, visit
the Southern California Division in the General Motors section.
On that page the Southern California's War Division's "War
Production History" shows that it was a contractor to Army
Ordnance, and was not a part of or being managed by Cadillac
Division. |
|
Serial Numbers |
Manufacturer and Model |
Date
|
M5
Monthly Production |
M5A1 Monthly Production |
USA Registration Numbers |
Purchase Order |
| 1 |
Cadillac M5 |
12-42 |
1 |
|
3046702 |
T-3013 |
| |
|
|
|
|
|
|
| 2 - 4 |
Cadillac M5 |
4-1942 |
3 |
|
3043436 - 3043438 |
T-3159-1 |
| 5 - 20 |
|
5-1942 |
16 |
|
3043439 - 3043454 |
|
| 21 - 80 |
|
6-1942 |
60 |
|
3043555 - 3043514 |
|
| 81 - 203 |
|
7-1942 |
123 |
|
3043515 - 3043637 |
|
| 204 - 443 |
|
8-1942 |
240 |
|
3043638 - 3043877 |
|
| 444 - 825 |
|
9-1942 |
382 |
|
3043878 - 3044259 |
|
| 826 - 1290 |
|
10-1942 |
465 |
|
3044260 - 3044724 |
|
| 1291 - 1470 |
|
11-1942 |
180 |
|
3044725 - 3044904 |
|
| |
Total Cadillac M5 |
|
1470 |
|
|
|
| |
|
|
|
|
|
|
| 1471 - 1706 |
Cadillac M5A1 |
11-1942 |
|
236 |
3044905 - 3045140 |
T-3159-1 |
| 1707 - 2000 |
|
12-1942 |
|
294 |
3045141 - 3045434 |
|
| 2001 |
|
2-1943 |
|
1 |
3045435 |
|
| 2002 - 2175 |
|
12-1942 |
|
174 |
3045436 - 3045609 |
T-3110 |
| 2176 - 2267 |
|
1-1943 |
|
92 |
3045610 - 3045701 |
|
| |
|
|
|
|
|
|
| 2268 - 2288 |
Southern
California Division M5 |
8-1942 |
21 |
|
3045702 - 3045722 |
T-3159-2 |
| 2289 - 2339 |
|
9-1942 |
51 |
|
3045723 - 3045773 |
|
| 2340 - 2417 |
|
10-1942 |
78 |
|
3045774 - 3045851 |
|
| 2418 - 2522 |
|
11-1942 |
105 |
|
3045852 - 3045956 |
|
| 2523 - 2621 |
|
12-1942 |
99 |
|
3045957 - 3046055 |
|
| |
Total Southern California Division Total
M5 |
|
354 |
|
|
|
| |
|
|
|
|
|
|
| 2622 - 2694 |
Southern
California Division M5A1 |
12-1942 |
|
73 |
3046056 - 3046128 |
|
| 2695 - 2819 |
|
1-1943 |
|
125 |
3046129 - 3046253 |
|
| 2820 - 2969 |
|
2-1943 |
|
150 |
3046254 - 3046403 |
|
| 2970 - 3119 |
|
3-1943 |
|
150 |
3046404 - 304655 |
|
| 3120 - 3244 |
|
4-1943 |
|
125 |
3046534 - 3046678 |
|
| 3245 - 3267 |
|
5-1943 |
|
23 |
3046679 - 3046701 |
|
| |
|
|
|
|
|
|
| 3268 - 3271 |
Massey-Harris M5 |
7-1942 |
4 |
|
3064984 - 3064987 |
T-3347 |
| 3272 - 3278 |
|
8-1942 |
7 |
|
3064988 - 3064994 |
|
| 3279 - 3294 |
|
9-1942 |
16 |
|
3064995 - 3065010 |
|
| 3295 - 3344 |
|
10-1942 |
50 |
|
3065011 - 3065060 |
|
| 3345 - 3428 |
|
11-1942 |
84 |
|
3065061 - 3065144 |
|
| 3429 - 3517 |
|
12-1942 |
89 |
|
3065145 - 3065233 |
|
| |
Total
Massey-Harris M5 |
|
250 |
|
|
|
| |
|
|
|
|
|
|
| 3518 - 3524 |
Massey-Harris M5A1 |
12-1942 |
|
7 |
3065234 - 3065240 |
T-3347 |
| 3525 - 3585 |
|
1-1943 |
|
61 |
3065241 - 3065301 |
|
| 3586 - 3645 |
|
2-1943 |
|
60 |
3065302 - 3065361 |
|
| 3646 - 3707 |
|
3-1943 |
|
62 |
3065362 - 3065423 |
|
| 3708 - 3765 |
|
4-1943 |
|
58 |
3065424 - 3065481 |
|
| 3766 - 3767 |
|
5-1943 |
|
2 |
3065482 - 3065483 |
|
| |
|
|
|
|
|
|
| 3768 - 3890 |
Cadillac M5A1 |
1-1943 |
|
123 |
3046880 - 3047002 |
T-3578 |
| 3891 - 4079 |
|
2-1943 |
|
189 |
3047003 - 3047191 |
|
| 4080 - 4269 |
|
3-1943 |
|
190 |
3047192 - 3047381 |
|
| 4270 - 4379 |
|
4-1943 |
|
110 |
3047382 - 3047491 |
|
| 4380 - 4479 |
|
5-1943 |
|
100 |
3047492 - 3047591 |
|
| 4480 - 4579 |
|
6-1943 |
|
100 |
3047592 - 3047691 |
|
| 4580 - 4685 |
|
7-1943 |
|
106 |
3047692 - 3047797 |
|
| 4686 - 4831 |
|
8-1943 |
|
146 |
3047798 - 3047943 |
|
| 4832 - 4969 |
|
9-1943 |
|
138 |
3047944 - 3048081 |
|
| 4970 - 5115 |
|
10-1943 |
|
146 |
3048082 - 3048227 |
|
| 5116 - 5253 |
|
11-1943 |
|
138 |
3048228 - 3048365 |
|
| 5254 - 5446 |
|
12-1943 |
|
193 |
3048366 - 3048558 |
|
| 5447 - 5676 |
|
1-1944 |
|
230 |
3048559 - 3048788 |
|
| 5677 - 5906 |
|
2-1944 |
|
230 |
3048789 - 3049018 |
|
| 5907 - 6176 |
|
3-1944 |
|
270 |
3049019 - 3049288 |
|
| 6177 - 6426 |
|
4-1944 |
|
250 |
3049289 -
3049538 |
T-7067
starts with SN 6324 |
| 6427 - 6500 |
|
5-1944 |
|
74 |
3049539 - 3049612 |
|
| |
Total Cadillac M5A1 |
|
|
3,530 |
|
|
| |
|
|
|
|
|
|
| 8118 - 8194 |
Southern
California Division Total M5A1 |
5-1943 |
|
77 |
3051229 - 3051305 |
T-3578-2 |
| 8195 - 8317 |
|
6-1943 |
|
123 |
3051306 - 3051428 |
|
| 8318 - 8476 |
|
7-1943 |
|
159 |
3051429 - 3051587 |
|
| 8477 - 8667 |
|
8-1943 |
|
191 |
3051588 - 3051778 |
|
| |
Total Southern California Division Total
M5A1 |
|
|
1,196 |
|
|
| |
|
|
|
|
|
|
| 9768 - 9825 |
Massey-Harris M5A1 |
5-1943 |
|
58 |
3059072 - 3059129 |
T-3886 |
| 9826 - 9885 |
|
6-1943 |
|
60 |
3059130 - 3059189 |
|
| 9886 - 997 |
|
7-1943 |
|
86 |
3059190 - 3059275 |
|
| 9972 - 10037 |
|
8-1943 |
|
66 |
3059276 - 3059341 |
|
| 10038 - 10097 |
|
9-1943 |
|
60 |
3059342 - 3059401 |
|
| 10098 - 10157 |
|
10-1943 |
|
60 |
3059402 - 3059461 |
|
| 10158 - 10217 |
|
11-1943 |
|
60 |
3059462 - 3059521 |
|
| 10218 - 10267 |
|
12-1943 |
|
50 |
3059522 - 3059571 |
|
| |
|
|
|
|
|
|
| 10268 - 10312 |
American Car and
Foundry - Berwick |
10-1943 |
|
45 |
3067486 - 3067530 |
T-4139 |
| 10313 - 10411 |
|
11-1943 |
|
99 |
3067531 - 3067629 |
|
| |
|
|
|
|
|
|
| 10412 - 10462 |
|
11-1943 |
|
51 |
3089217 - 3089267 |
T-4317 |
| 10463 - 10682 |
|
12-1943 |
|
220 |
3089268 - 3089487 |
|
| 10683 - 10882 |
|
1-1944 |
|
200 |
3089488 - 3089687 |
|
| 10883 - 11050 |
|
2-1944 |
|
168 |
3089688 - 3089855 |
|
| 11051 - 11233 |
|
3-1944 |
|
183 |
3089856 - 3090038 |
|
| 11234 - 11267 |
|
4-1944 |
|
34 |
3090039 - 3090072 |
|
| |
Total American
Car and Foundry M5A1 |
|
|
1000 |
|
|
| |
|
|
|
|
|
|
| 15501 - 15510 |
Massey Harris M5A1 |
12-1943 |
|
10 |
30102715 -
30102724 |
T-8089 |
| 15511 - 15570 |
|
1-1944 |
|
60 |
30102725 -
30102784 |
|
| 15571 - 15630 |
|
2-1944 |
|
60 |
30102785 -
30102844 |
|
| 15631 - 15690 |
|
3-1944 |
|
60 |
30102845 -
30102904 |
|
| 15691 - 15750 |
|
4-1944 |
|
60 |
30102905 -
30102964 |
|
| 15751 - 15810 |
|
5-1944 |
|
60 |
30102965 -
30103024 |
|
| 15811
- 15834 |
|
6-1944 |
|
24 |
30103025 - 30103048 |
|
| |
Total Massey Harris M5A1 |
|
|
1,084 |
|
|
| |
Total M5 and
M5A1 |
|
2,074 |
6,810 |
|
|
| |
|
|
|
|
|
This Cadillac-built M8 75mm Howitzer Gun
Carriage is on display at the American Heritage Museum in Hudson, MA.
There are only five left in the United States, and only three are at
museums where they can be viewed. Author's photo added 10-17-2019.
|
Cadillac
Division of General Motors M8 75mm Motor Carriage Production Information
This section added 10-17-2019. |
| Date
|
Monthly Production |
Serial numbers |
USA Registration Numbers |
| 9-1942 |
1 |
1 |
4051234 |
| 10-1942 |
24 |
2-25 |
4051235-4051258
|
| 11-1942 |
101 |
26-126 |
4051259-4051359 |
| 12-1942 |
247 |
127-373 |
4051360-4051606 |
| 1-1943 |
160 |
374-533 |
4051607-4051766 |
| 2-1943 |
160 |
534-693 |
4051767-4051927 |
| 3-1943 |
160 |
694-853 |
4051928-4052086 |
| 4-1943 |
160 |
854-1013 |
4052087-4052246 |
| 5-1943 |
160 |
1014-1173 |
4052247-4052406 |
| 6-1943 |
160 |
1174-1333 |
4052407-4052566 |
| 7-1943 |
62 |
1334-1395 |
4052567-4052628 |
| 8-1943 |
62 |
1396-1457 |
4052629-4052690 |
| 9-1943 |
62 |
1458-1519 |
4052691-4052752 |
| 10-1943 |
62 |
1520-1581 |
4052753-4052814 |
| 11-1943 |
62 |
1582-1643 |
4052815-4052876 |
| 12-1943 |
60 |
1644-1703 |
4052877-4052938 |
| 1-1944 |
75 |
1704-1778 |
4052939-4053011 |
| Total |
1,778 |
|
|
|
