Richardson Boat Company in World War Two
North Tonawanda, NY
1909-1962
This page started 4-22-2024.
On December 13, 1879, G. Reid Richardson was
born in Midland, MI. After graduating from high school, he began
his boat building career at the Bay City Yacht Works in Bay City, MI.
In 1906, he moved to North Tonawanda, NY to work as a foreman for the
Niagara Motor Boat Company. In 1909 he set off on his own and
created the Richardson Boat Company.

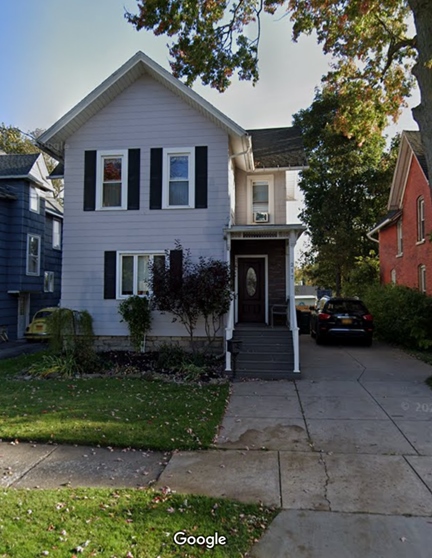

Between 1909 and 1911 he built his first
boats at 217 Tremont Street in North Tonawanda, NY. Image courtesy
of Google Maps.
In 1911, he built a dedicated boat factory
at 370 Sweeney Street in North Tonawanda, NY. Image courtesy of
Google Maps.
Mr. Richardson ran the company under his own
ownership and leadership until he passed away at age 57 on February 18,
1937. The company continued without him through World War Two
until 1962, when it closed due to bankruptcy.
The Richardson Boat Company won the
Army-Navy "E" Award five times during World War Two.
The company won its first award on
April 10, 1943.
Richardson Boat Company World War Two
Products: The company produced an estimated 1,141 small wooden
boats of various types for the U.S. Army, U.S. Navy, and U.S. Coast
Guard. It was one of six companies that produced the LCVP 36-foot
landing craft which was so important for the large number of amphibious
landings made by U.S. forces in World War Two. It built at least
600 of these important landing craft to help win World War Two.
Table 1 - Richardson Boat Company's
Major World War Two Contracts
The information below
comes from the "Alphabetical Listing of Major War Supply
Contracts, June 1940 through September 1945." This was
published by the Civilian Production Administration, Industrial
Statistics Division. |
Product - Customer |
Contract Number |
Contract Amount |
Contract Awarded
Date |
Completion
Date |
Yawls - Army |
1311-QM-00246 |
$53,000 |
12-1941 |
3-1942 |
Boats - Navy |
NOS-97915 |
$702,000 |
2-1942 |
6-1942 |
Small Craft -
Navy |
TCG-34576 |
$525,000 |
6-1942 |
3-1942 |
Yawls - Army |
2789-TC-189 |
$120,000 |
9-1942 |
11-1942 |
Landing Craft
- Navy |
OBS-825 |
$1,260,000 |
10-1942 |
9-1943 |
Cabin Picket
Boats - Navy |
TCG-34041 |
$393,000 |
11-1942 |
11-1942 |
Launches -
Army |
2789-TC-1134 |
$329,000 |
4-1943 |
7-1944 |
Landing Craft
- Navy |
OBS-1034 |
$1,200,000 |
4-1943 |
2-1944 |
Landing Craft
- Navy |
OBS-1248 |
$2,818,000 |
8-1943 |
12-1944 |
Landing Craft
LCVP - Navy |
OBS-1956 |
$810,000 |
9-1944 |
3-1945 |
Ship Parts -
Navy |
407-XSS-6442 |
$107,000 |
10-1944 |
11-1944 |
Landing Craft
LCVP - Navy |
OBS-2005 |
$803,000 |
12-1944 |
6-1945 |
Landing Craft
LCVP - Navy |
OBS-2047 |
$1,262,000 |
1-1945 |
6-1945 |
Total |
|
$10,382,000 |
|
|
Table 2 -
Richardson Boat Company's World War Two Customer Percentages
|
Customer |
Amount |
Percentage |
Navy |
$9,880,000 |
95% |
Army |
$502,000 |
5% |
Total |
$10,382,000 |
100% |

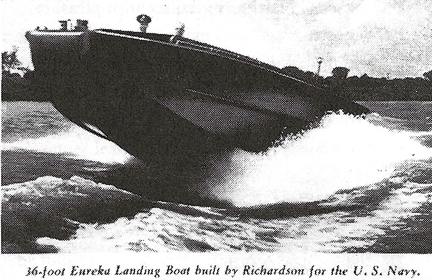

A close look at this Richardson-built Eureka
landing craft indicates that it has a six-foot wide ramp on the bow.
This is therefore a LCP(R) landing craft.
Table
3 -
Boats built by the
Richardson Boat Company during World War Two
The information provided in this Table is from
www.shipbuildinghistory.com |
Type |
Quantity |
Boat Numbers |
Comments |
36-Foot Picket Boat |
47 |
C38387-C38443 |
U.S. Coast Guard |
36-Foot Picket Boat |
70 |
C38537-C38606 |
U.S. Coast Guard |
Cable Boat |
17 |
M 357-373 |
U.S. Army |
Cable Boat |
19 |
M 374-392 |
U.S. Army |
Tug |
41 |
MT 137-177 |
U.S. Army |
Passenger |
54 |
J 1109-1162 |
U.S. Army |
Passenger |
29 |
P 326-354 |
U.S. Army |
LCP(L) |
1 |
LCP(L) 6515 |
U.S. Navy |
LCP(R) |
1 |
LCP(R) 8660 |
U.S. Navy |
LCP(R) |
1 |
LCP(R) 8672 |
U.S. Navy |
LCVP |
1 |
LCVP 20838 |
U.S. Navy |
LCVP |
1 |
LCVP 43486 |
U.S. Navy |
LCVP |
1 |
LCVP 70789 |
U.S. Navy |
LCVP |
1 |
LCVP 77879 |
U.S. Navy |
LCVP |
1 |
LCVP 80159 |
U.S. Navy |
LCVP |
1 |
LCVP 80236 |
U.S. Navy |
Table 4 - Richardson Boat Company World War Two Landing
Craft Contracts |
Product - Customer |
Contract Number |
Contract Amount |
Contract Awarded
Date |
Completion
Date |
Landing Craft
- Navy |
OBS-825 |
$1,260,000 |
10-1942 |
9-1943 |
Landing Craft
- Navy |
OBS-1034 |
$1,200,000 |
4-1943 |
2-1944 |
Landing Craft
- Navy |
OBS-1248 |
$2,818,000 |
8-1943 |
12-1944 |
Landing Craft
LCVP - Navy |
OBS-1956 |
$810,000 |
9-1944 |
3-1945 |
Landing Craft
LCVP - Navy |
OBS-2005 |
$803,000 |
12-1944 |
6-1945 |
Landing Craft
LCVP - Navy |
OBS-2047 |
$1,262,000 |
1-1945 |
6-1945 |
Total |
|
$8,153,000 |
|
|
Table 4 shows that 79% of the Richardson
Boat Company's World War Two contracts were for U.S. Navy landing craft.
At a minimum, the company had $2,875,000 in LCVP contracts. Using
a value of $8,000* for the average cost of World War Two landing craft
built by a small company like Richardson, this equates to 360 LCVPs.
However, "The Inland Seas, Quarterly Journal Of the Great Lakes
Historical Society, Fall 1982 Volume 38" indicates that the company
built 604 LCVPs. Table 5 shows that the company built an
estimated 628 LCVPs. The numbers are close; and considering the
lack of data, it appears that the Richardson Boat Company built a little
over 600 LCVPs to help win World War Two. By adding in Navy
Contract OBS-1248, the total contract estimated contract value for LCVPs
is $5,693,000 which results in an estimated 711 LCVPs. This
indicates that the Richardson Boat Company was building LCVPs for an
estimated $9,425 per boat.
Assuming that Contracts OBS-825 and
OBS-1034 were for LCP(R) landing craft, this gives an estimated number
built at 260. This is based on a cost of $9,425 per boat.
Overall, the company appears to have
built an estimated 864 36-foot wooden landing craft during World War
Two.
*Chris-Craft's first contract for 36-foot
landing craft was for $8,000 per unit. It later reduced the cost
per boat to $6,000. However, Chris-Craft was a high volume
manufacturer which Richardson was not. $8,000 is a good starting
point for an estimated cost but then needed to be refined as the data
suggested.
Table 5 -
Estimated Richardson LCVP C-Numbers
This information is based on LCVP research by Mr. George
Schneider. |
C-Numbers |
Quantity |
Year Manufactured |
Contract Number |
Comments |
C-20838 |
1 |
1943 |
|
Single Entry. |
C-35139 thru C-35255 Inclusive |
117 |
1944 |
|
Estimated from
C-3-5139, C-35211, C- 35217, and C- 35255. |
C-43486 |
1 |
1944 |
|
Single Entry. |
C-70736 thru C-70789 Inclusive |
54 |
1944 |
|
Estimated from
C-70736 and C-70789. |
C-80007 thru C-80236 Inclusive |
230 |
|
|
Estimated
from C-80007, C-80151, C-80179, and C-80236. |
C-81268 thru C-81365 Inclusive |
98 |
1945 |
|
Estimated from
C-81268, C-81274, C-81292, C-81295, C-81316, C-81336, C-81339,
and C-81365. |
C-85648
thru C-85774 Inclusive |
127 |
1945 |
|
Estimated from C-85648,
C-85661, C-85664, and C-85774. |
Total |
628 |
|
|
|
.

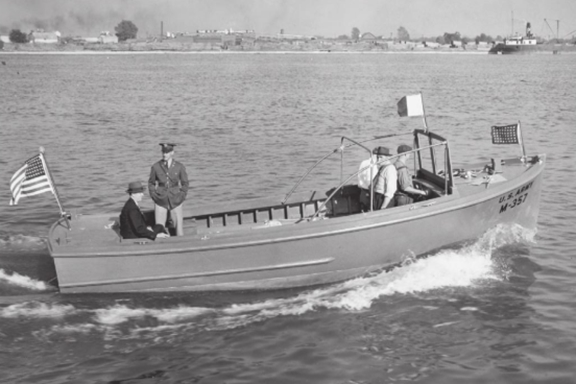

According to Table 3, M-357 was a U.S. Army cable boat. Here it is
being tested on the Niagara River with an Army officer aboard.

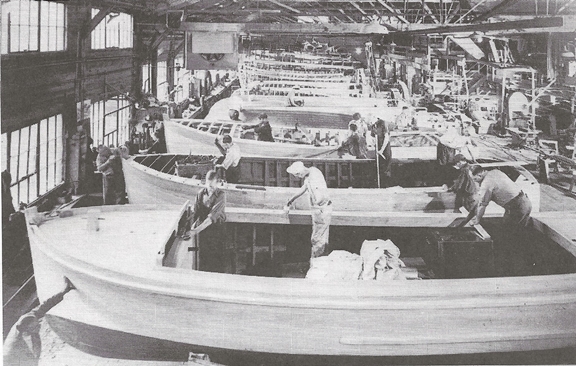

This Richardson Boat Company World War Two
era photo shows workers building cable boats for the U.S. Army.

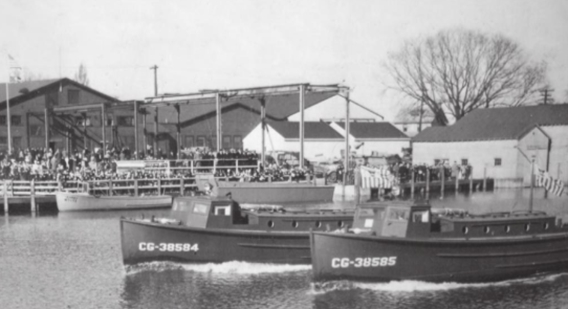

This image shows U.S. Coast Guard 36-foot
picket boats on parade on the Erie Canal in front of the Richardson
factory.

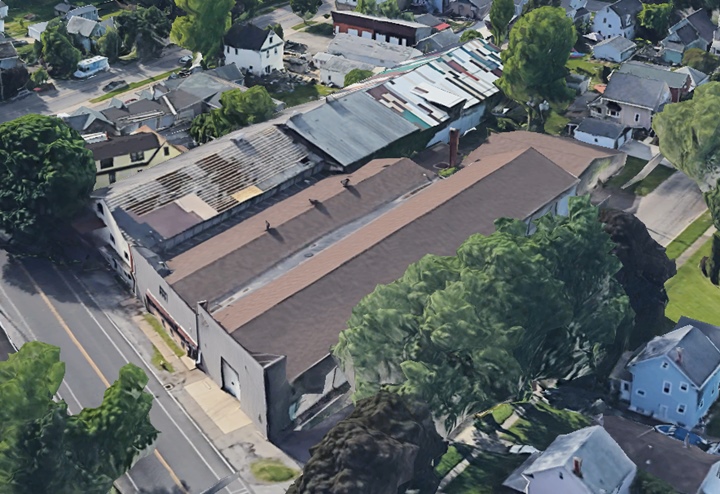

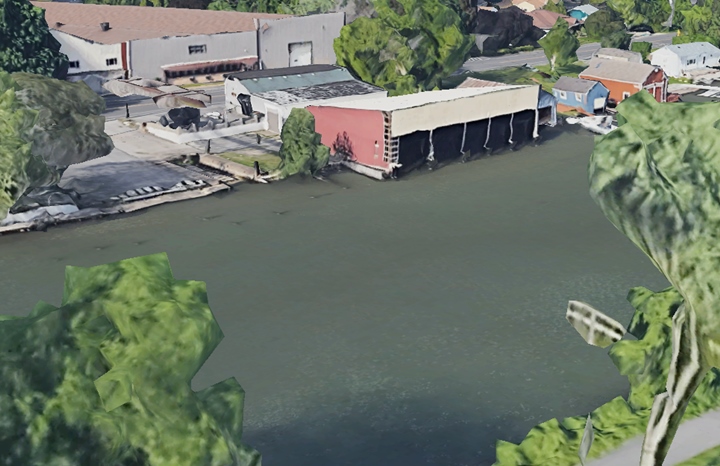

This Google Earth image shows the same
location today. The former Richardson Boat Company factory built
in 1911 still exists. Image courtesy of Google Earth.

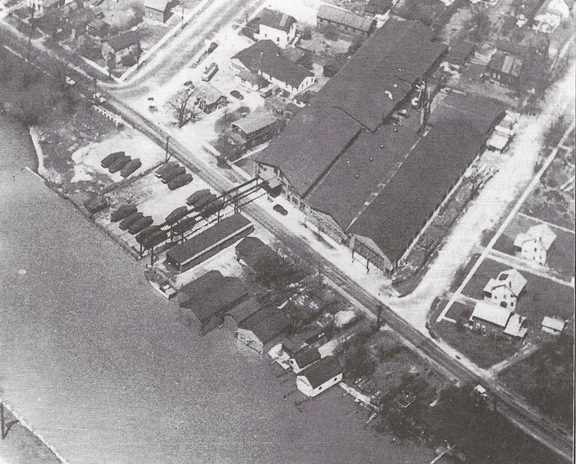

This World War Two era photo shows the
factory as it was then. Note the overhead monorail structure that
runs from the factory, across Sweeney Street, and then to the water's
edge. The monorail was used to move a new boat as it came out of
the factory to the canal.

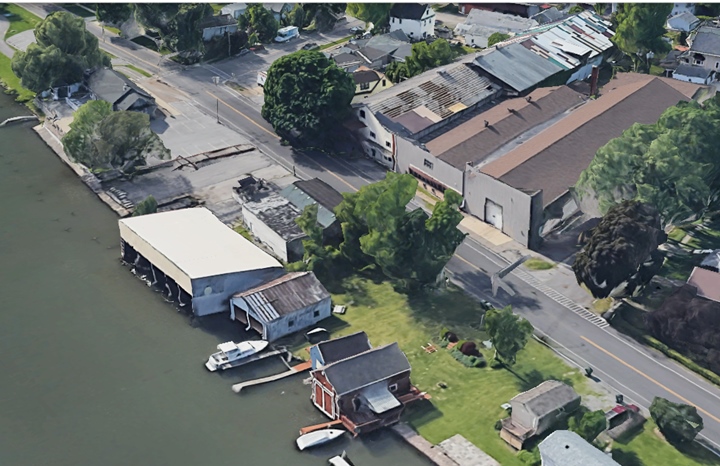

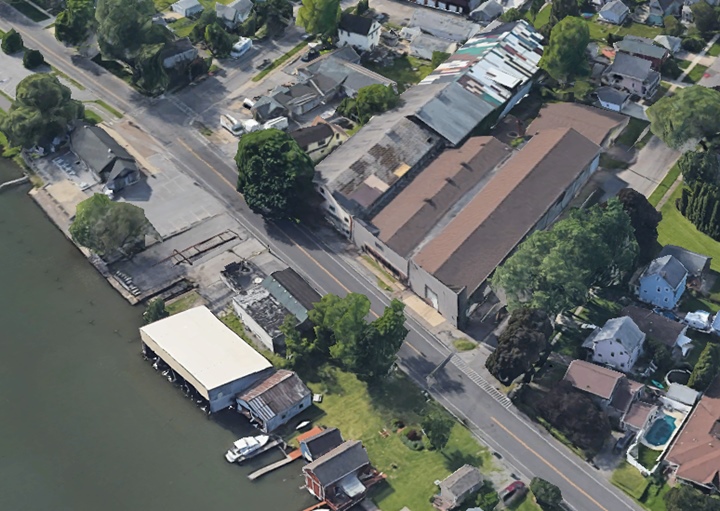

This Google Earth image shows the same
location today. Part of the ground structure of the monorail can
still be seen in this image.
Image courtesy of Google Earth.
Image courtesy of Google Earth.

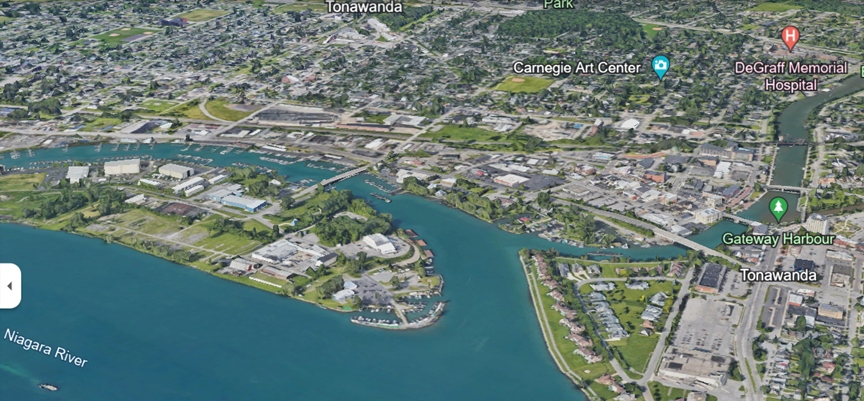

The Richardson Boat Company factory is
located under the word "Hospital"
in the upper right hand corner of the image. The company would
sail its newly-built boats down the Erie Canal and then test them on the
Niagara River. The distance from the factory to the Niagara River
is about one mile. Image courtesy of Google Earth.

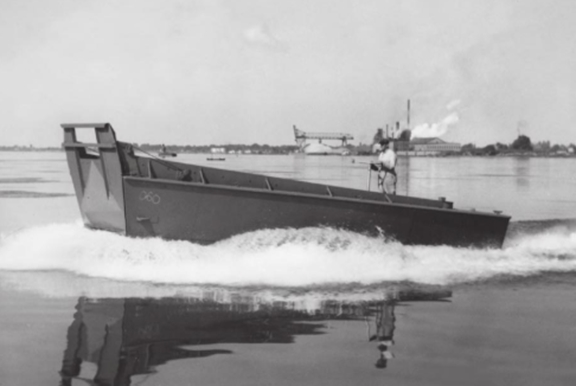

This LCVP is being tested on the Niagara
River. Note that the steering wheel has been extended so that the
operator can see better over the bow ramp.
The Richards Boat Company Factory:

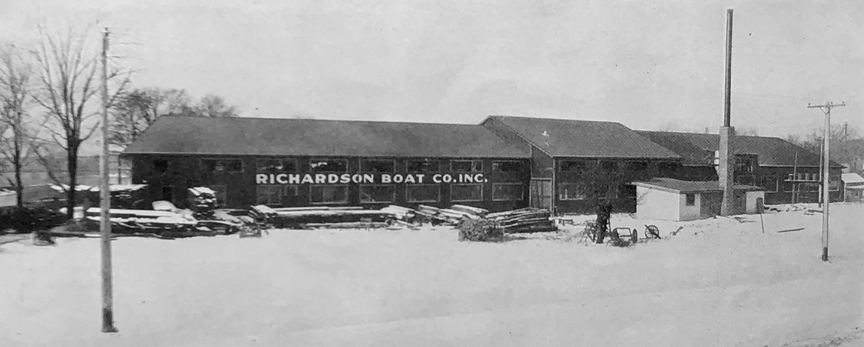

This image shows the factory on a cold
winter day in
1929.

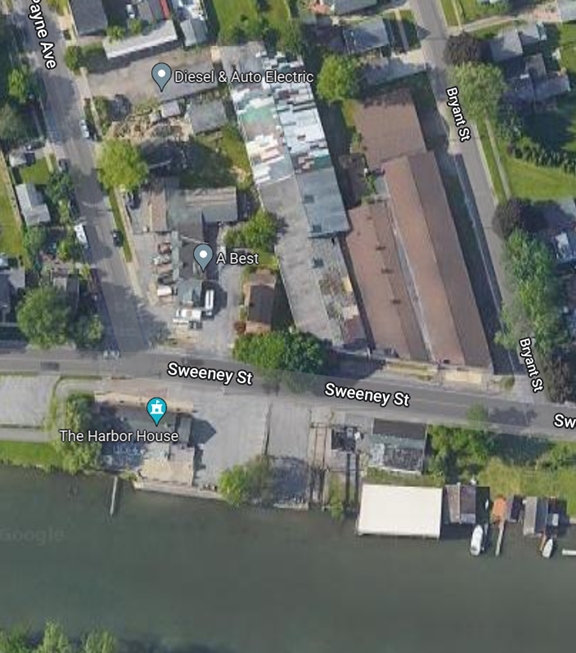

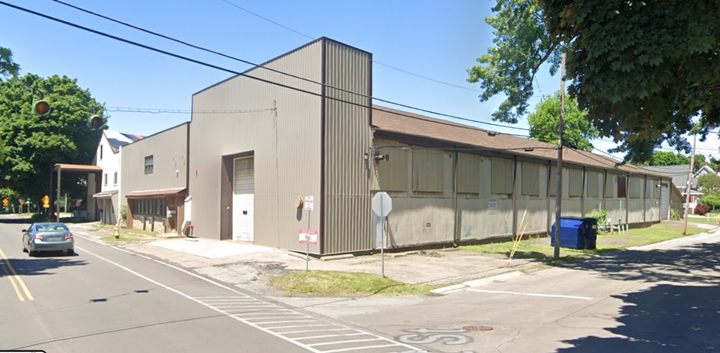

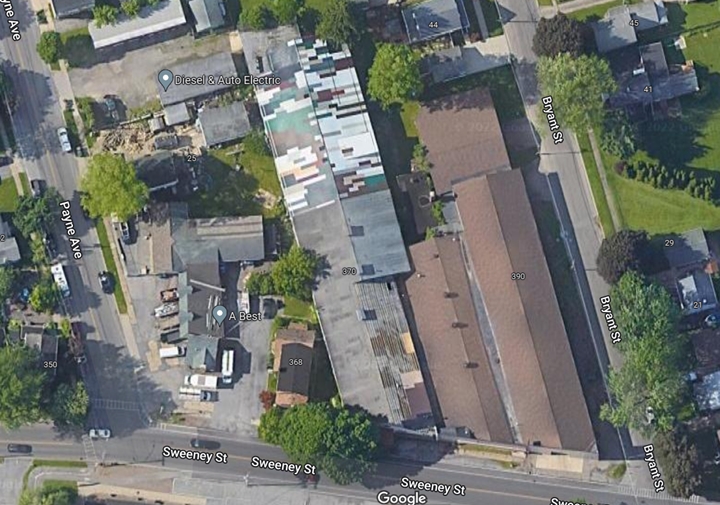

The factory on Sweeney Street still exists
today. During World War Two an estimated 1,141 boats were produced
in this plant to help win World War Two. Image courtesy of Google
Maps.
Image courtesy of Google Maps.
Image courtesy of Google Maps.

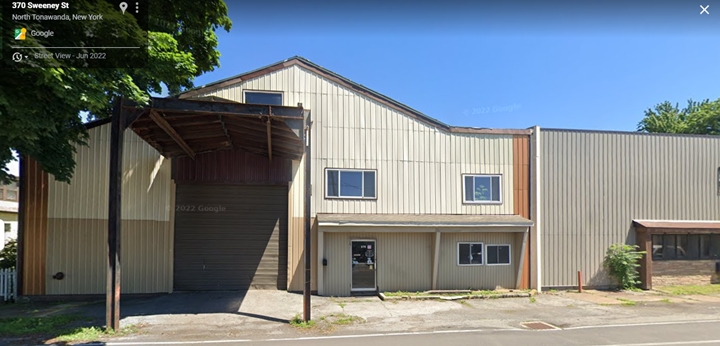

The finished boats would exit from the
overhead door that fronts Sweeney Street. Some of the overhead
monorail structure is still present. Image courtesy of Google
Maps.
|
